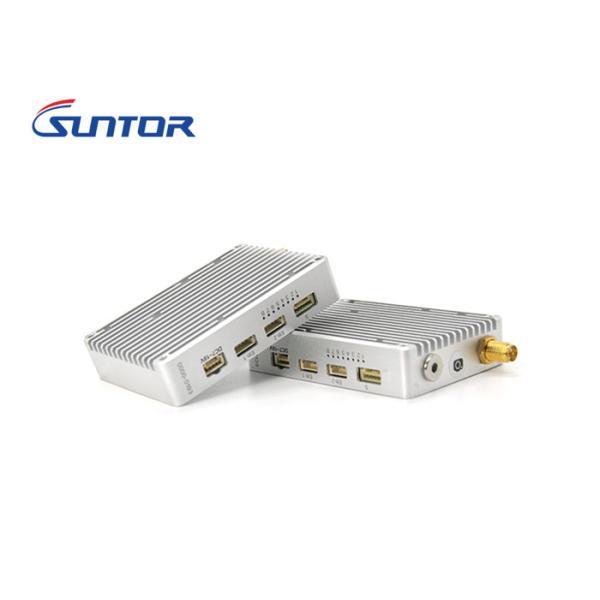

10KM Drone Transmitter And Receiver Link 2.4GHz Frequency With ETH / TTL

Brand Name : Suntor

Model Number : ST10NPT

Certification : CE, RoHS, FCC

Place of Origin : Shenzhen

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 1000 pcs per month

Delivery Time : 7-10 days

Packaging Details : Box Package

Range : 10KM

Dimensions : 68×48×15mm

Weight : 68g

Color : White

RF Power : 30dBm

Material : GB Aluminum

Modulation : TDD-COFDM

Frequency : 2.3-2.5GHz

Contact Now

Suntor working at wireless transmission filed has been 13 years. The high-tech enterprise born from a small electronics corporation in Shenzhen to now day a large scale company step by step. Suntor manufacture specially various of wireless video transmission equipment, and did a lot of solutions and help for customers all over the world.

10KM Drone Transmitter And Receiver Link 2.4GHz Frequency With ETH / TTL


Features

1. Ultra-low power consumption 5W
2. Support aes128 encryption
3. Excellent objective and subjective video

4. Ultra-low latency 20-30ms

5. Long range and good performance

6. Ultra small resource and high performance

Ethernet Protocol UDP/ TCP
Frequency

3 frequency for your option 2.3Ghz/2.4Ghz/2.5Ghz(customized)

2.3GHz(2304~2390MHz)

2.4GHz(2402Mhz-2482MHz) default

2.5GHz(2500~2570MHz)
RF Transmitting Power 30dBm(air to ground 5km)
Frequency Bandwidth 4MHz
Error Detection LDPC FEC
Start-up time <35 s
Communication Channel Encryption aes 128
Transmission Mode point to point
Net Weight Tx/ Rx: 68g
Start-up time < 30s
Two-way function Support video and duplex data simultaneously
Data Support SBUS/TTL/MAVLINK Telemetry
Date Rate 4-5Mbps
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Sensitivity

-100dbm@4Mhz

-95dbm@8Mhz
Power DC12V (support DC 7-18V)
Power Consumption TX: 6Watts
RX: 5Watts
Temperature Operating temperature: -40 - +85°C
Storage temperature: -55 - +100°C
Interface Power input interface × 1
Antenna interface × 1
TTL Bidirectional Port × 1
Ethernet port× 2
Indicator RJ45 input/output indicator light
Transmitting and receiving indicator light
Transmitting and receiving indicator light
Power light
Size 68×48x15mm

10KM Drone Transmitter And Receiver Link 2.4GHz Frequency With ETH / TTL

Suntor bought many new machines for testing products and control the quality carefully, focus on wireless transmission equipment all the time, for example 1.3-2.5GHz UAV link transmission system, UHF mobile video system, 5.8GHz long range backhaul system and MESH Ad-Hoc Network system. It’s obvious, Suntor brand is more and more popular and stronger in video transmission industry.

.
