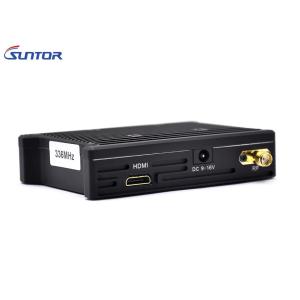

720P COFDM Micro High Definition Multimedia Interface Wireless Transmitter Receiver For Robots Surveillance

Model Number : ST6200BM-HD

Place of Origin : Shenzhen, China

Brand Name : SUNTOR

Certification : FCC, CE, RoHS

MOQ : 1 set

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000 set/ month

Price : Negotiation

Packaging Details : Plastic Box

Delivery Time : 7-15 days

modulation : COFDM

Frequency Range : 138MHz-2GHz

Channel Bandwidth : 6MHz

Resolution : HD 720P

Transmission Range : Air to ground: 1-5km LOS: 1-2km NLOS≥200m

Power Supply : DC 9-16V

Light Weight : 120g

Contact Now

Micro High Definition Multimedia Interface Nols 720P COFDM HD Tansmitter and receiver for Robtos Surveillance

Introduction:
Small, light, use H.264 encoding scheme and COFDM digital modulation mode, provide 720P HD video, great diffraction ability, support non-line of sight transmission, can be put in brief case, can transmit the live image to the rear people when secretly visit or obtain evidence. It is mainly used in public security, procurator, law, security bureau, other departments, etc.

Features:

  • Low delay, light weight, live broadcast
  • Support 720P HD transmission
  • COFDM modulation
  • Built-in with HDM or interface
  • Adjustable frequency

COFDM transmission system advantages:
Long range transmission distance
Real-time transmission systems
Delay time very short less than 300ms
Perfect image quality, brighter colors and image smoothness. (we will support video to demonstration it if you sent inquiry)

RF-modulation Part
Frequency Range 138MHz~2GHz (customizable)
Modulation COFDM
Output Power 400mW
Transmission Distance LOS: 1~2KM, Air to earth: 1~5KM, NLOS>200m
Channel Bandwidth 6MHz
Error Correcting Mode FEC@Viterbi (1/2, 2/3, 3/4)
Guard Interval 1/32, 1/16, 1/8, 1/4
Technical Standard H.264
Code Stream 2Mbps~8Mbps
Usage Mode Easy carrying, aerial photo, Hidden, NLOS transmit
Video Audio Part
Image Resolution HD720P (1280*720)
Compression Format H.264/MEG-2
Image fps Standard 24,50,60 fps
Video Audio Input/output port Digital High Definition Multimedia Interface port
RF Physical Interface SMA
Transmitter Light Video screen, channel shows
Receiver Signal Light shows the signal strong
Alarm Output Video loss, image loss
Receiving Polarization Vertical
Other Part
Other Function Comes with restart button and channel checking button
Power Supply Transmitter DC2.75 port, DC9-16V
Receiver DC5.5, DC9-16V
Size Transmitter 89*62*22mm
Receiver 108*88*21mm
Net Weight Transmitter 120g
Receiver 170g
