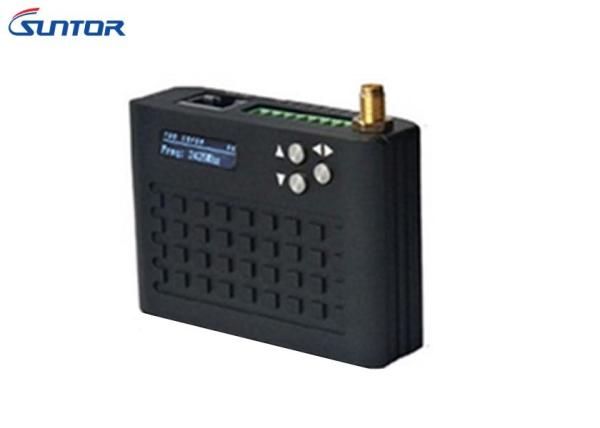

COFDM 2.4GHz Mini Radio Transmitter Video Data Wireless Networking Communication

Model Number : ST2410CO

Place of Origin : Shenzhen, China

Brand Name : SUNTOR

Certification : FCC, CE, RoHS

MOQ : 1 set

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000 set/ month

Modulation : TDD-COFDM

Frequency Range : 2405-2470MHz

Transmission power : 20dBm-30dBm adjustable

Channel bandwidth : 4/8MHz adjustable

Transmission Mold : Full-Duplex/ Half-duplex

Transmission Rate : 2Mbps～12Mbps

Transmission Range : Horizontal on gound: 1-10km (LOS), Air to ground: 8-20km, Horizontal on sea 10-30km(LOS)

Video interface : RJ45 / RS232 / RS422 / RS485

Price : Negotiation

Packaging Details : Plastic Box

Delivery Time : 7-15 days

Contact Now

2.4GHz Mini Radio Transceiver COFDM Video Data Wireless Networking Communication

Product description:
As its small size and lightweight, the transceiver is widely used in UAV, flight test, maglev high-speed rail and automatic robot and more complex environments.

Features:

  • -grade digital data transmitter
  • TDD duplex mode
  • Excellent sensibility
  • High RF output power
  • Well safety performance
  • Point to point and point to multi-point transmission
  • Remote control
  • Good diffraction ability
  • Wide coverage
  • High transfer rate up to 12Mbps
  • Confidentiality
  • Proprietary data scrambling encryption

Modulation
Frequency Range 2405-2470MHz(Adjustable), Adjust wavelength 1Mhz on LCD
Frequency Channel TDD
Modulation COFDM
Bandwidth 4/8MHz adjustable on LCD
Output power 100mW-1W adjustable
Encryption AES 128-bit encryption, manually enter KEY code
System
Transmission mold Full-Duplex/ Half-duplex
Transmission Protocol standard TCP / IP , transparent transmission, serial asynchronous data
Data Type 10/100Bate-T Ethernet, industry RS-232, RS-422-RS485 standard
Analog audio Customized analog audio input connector
Transmission rate 2Mbps～12Mbps
Transmission delay 10～30ms
Networking mode Point to Point, Point to Multi Point
Error Rate ≤10-6
Transmission distance Horizontal on gound: 1-10km (LOS), Air to ground: 8-20km, Horizontal on sea 10-30km(LOS)
Receiving sensitivity -99dBm
Receiving mode Omni
Application Portable , aerial photography , aerial operation , short distance data transmission
Physical interface
Ethernet interface RJ45
RS-232/422/485 Six pin terminal blocks
Power Input Six pin terminal blocks
Audio input interface Standard 3.5 audio interface
RF interface SMA Female
Other
Power supply DC7-17V
LCD LCD to display and adjust the parameters
After 4.5 minutes to automatically turn off the LCD to save power
Equipment Color Black
Dimension 75*51*22mm (L×W×H)
Weight 120g

Technical performance:

  • Multi-frequency network base stations, single base station same frequency network, the same frequency network with bidirectional communication, high spectrum efficiency
  • Flexible allocation of channel resources to achieve PTP, PTMP and multipoint-to-multipoint two-way communication
  • Multiple channel bandwidth and a variety of modulation mode function
  • Flexible TDD slot allocation model to meet a single-frequency but multi-user access, not only save the spectrum but also to reduce power consumption
  • Spectrum sensing, perception slot, upstream bandwidth sensing function
  • Strong diffraction ability and anti-multi path capability
  • Can transmit video audio and etc signals synchronous, high speed.
  • Digital signal processing, a strong system of confidentiality, stability and reliability.

Application

COFDM 2.4GHz Mini Radio Transmitter Video Data Wireless Networking Communication
