CD05HPT Ultra-high Resolution Drone Video Transmitter with H.264+H.265 Coding

Name: CD05HPT Ultrahigh Resolution Drone Video Transmitter with H264H265 Coding
Brand: SUNTOR
Price: 1 USD

Cheap CD05HPT Ultra-high Resolution Drone Video Transmitter with H.264+H.265 Coding for sale

Model Number : CD05HPT

Place of Origin : Shenzhen, China

Brand Name : SUNTOR

Certification : FCC, CE, RoHS

MOQ : 1 set

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000 set/ month

Price : Negotiation

Packaging Details : Plastic Box

Delivery Time : 7-15 days

Modulation : TDD-COFDM

Frequency range : 2.402 - 2.478 GHz

Distance : Air to ground 5km

Latency : ≤12-25ms

Duplex Data Transmission : PPM/SBUS/TTL

Resolution : Full HD 1080P/60

Dimension : 72*47*19mm

Weight : TX 94g/ RX 94g

Contact Now

Low Latency Drone Video Transmitter for UAV 1080P HD Multimedia Sender

CD05HPT Drone Video Transmitter & Receiver Specifi...

1. Description

CD05HPT is a Economy mini High Definition Multimedia Interface Video and Data transmission COFDM system for UAV. It support HD1080P video. It develops H.264+H.265 coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 5km) and low delay(12-25ms) transmission. The system supports (data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.

2. Features

Low delay time less than 25ms
Lightweight, 94g net weight only
Small size
1km to 5km LOS distance on air
High quality and cost COFDM video transmitter
Aluminum-unibody housings featured, good impact resistance and heat dissipation
Special design for economical drone

3. Parameters

Wireless
Frequency Range	2.4GHZ (2402-2482GHZ)
Bandwidth	4Mhz
Data Rate	3 ~ 5Mbps
RF Power	500mW (Air to Ground 5km)
Error Detection	LDPC FEC,Video H.264/265 Super Error Correction
Latency	≤15-30ms
Receive Sensitivity	-100dBm@4Mhz

Video
Video Input	Mini HDMI
Ressolution	Ultra HD 1080p/60fps
Compressed Format	H.264/H.265
Color Space	4:2:0(Default),4:2:2/4:4:4(Op.)

System
Start-up Time	≤30s
Transmission	Video＋Duplex Control Data
Data Protocol	SBUS/TTL/MAVLINK Telemetry
Power Supply	DC7 ~ 18V Power Supply
Security	AES128 Encryption

Interface
RF Antenna	SMA×1
HDMI Interface	Mini HDMI(HDMI Type C)×1
Serial Port Interface	TTL Serial to USB Connector×1
Ethernet Interface	Ethernet to RJ45 Connector×1
Power Input	2Pin to DC Jack Connector×1

Physical
Dimension	72x47x19mm
Weight	94g(Transmitter),94g(Receiver)
Operating temperature	-40°C ~ ＋85°C

4. Application

As its small size, lightweight and low RF power, the transceiver is widely used in multiple rotor drone, flight test.

Product Tags:

drone transmitter and receiver

drone wireless video transmitter

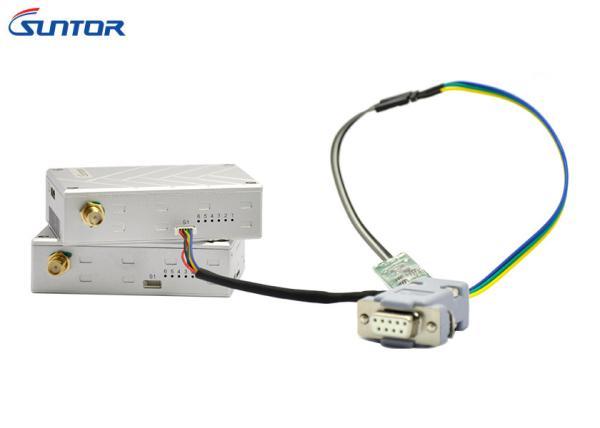

CD05HPT Ultra-high Resolution Drone Video Transmitter with H.264+H.265 Coding Images
