CD11HPT Compact Helicopter Video And Data Full Hd Wireless Transmitter Receier 1000mw With Strong Case

Name: CD11HPT Compact Helicopter Video And Data Full Hd Wireless Transmitter Receier 1000mw With Strong Case
Brand: SUNTOR
Price: 1 USD

Cheap CD11HPT Compact Helicopter Video And Data Full Hd Wireless Transmitter Receier 1000mw With Strong Case for sale

Model Number : CD11HPT

Place of Origin : Shenzhen, China

Brand Name : SUNTOR

Certification : FCC, CE, RoHS

MOQ : 1 set

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000 set/ month

Price : Negotiation

Packaging Details : Plastic Box

Delivery Time : 7-15 days

Modulation : TDD-COFDM

RF Power : 1000mW

Frequency : 2.402-2.478GHz

Data : Support SBUS/PPM/TTL

Transmission Distance : Air to ground 8-12km

Encryption : AES 125/256

Dimension : 72×47×19mm

Weight : Tx: 94g/Rx: 94g

Contact Now

Compact Helicopter Video And Data Full Hd Wireless Transmitter Receier 1000mw With Strong Case

CD11HPT Drone Video Transmitter & Receiver Specifi...

TDD-COFDM wireless video data links advantages:

1. Long range transmission distance 8-12km;
2. Delay time very short less than 25ms;
3. Perfect image quality, brighter colors and image smoothness.
4. Micro and lightweight less than 100g

Features:

Low delay time less than 25ms
Lightweight, 94g net weight only
Small size
8km to 12km LOS distance on air
High quality and cost COFDM video transmitter
Aluminum-unibody housings featured, good impact resistance and heat dissipation
Special design for economical drone

Parameters

Frequency	2.4GHZ(2.402-2.478GHz)
Frequency Bandwidth	2/4/6/8MHz
Latency	≤12-25ms
Video Input/output Interface	High Definition Multimedia Interface mini TX/RX, or transform FFC to High Definition Multimedia Interface-A RX/TX
Video Compressed Format	H.264+H.265
Adjustment mode of bitrate	Software adjustment
Receive Sensitivity	-100dbm ~ -90dbm
Two-way function	Support video and duplex data simultaneously
Data	Support SBUS/PPM/TTL
Power supply	DC 7- 18V (DC 12V advised)
Working Temperature	-40℃~+85℃

Parameter Model	RF Transmitted Power	Transmission Distance (Air to Ground)	Antenna Gain (Tx: 5dBi)	Power Consumption	Dimension	Net Weight
ST5XHPT	400mW	5km	Rx: 7dBi	Tx: 7W Rx: 5W	73×48×14mm	Tx: 58g Rx: 58g
ST5HPT	400mW	5km	Rx: 7dBi	Tx: 6W Rx: 5W	72×47×19mm	Tx: 94g Rx: 94g
ST11HPT	1W	8-12km	Rx: 8dBi	Tx: 7W Rx: 5W	72×47×19mm	Tx: 94g Rx: 94g

Application:

With proven Suntor TDD-COFDM technology and H.264+H.265 encoder technology at its core, the ST11HPT transmitter enables viewers HD images ideal for establishing rugged wireless video links in flight environment.

Product Tags:

drone transmitter and receiver

drone wireless video transmitter

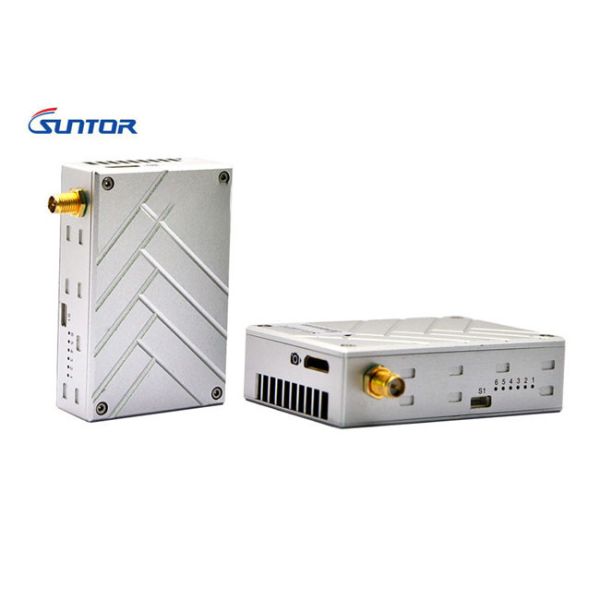

CD11HPT Compact Helicopter Video And Data Full Hd Wireless Transmitter Receier 1000mw With Strong Case Images
