AES256 COFDM two-way video voice manpack transmitter for potrol
Specification Sheet
Describe:

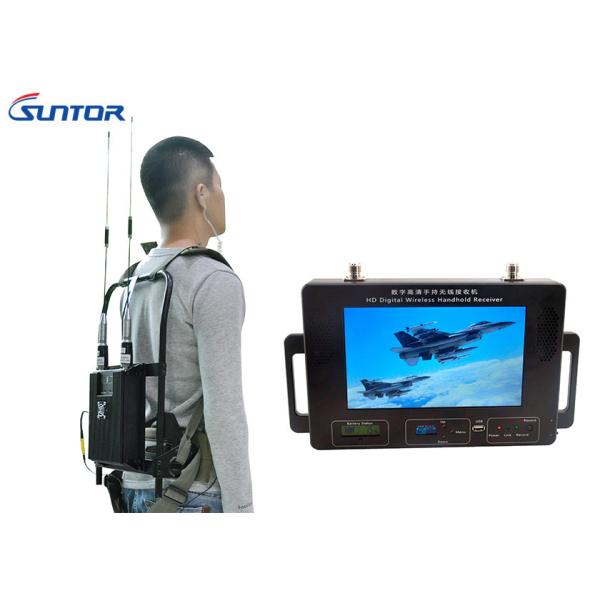

Suntor ST9502T wireless video surveillance system using the latest COFDM technology and AES256 encryption that allows user can be assured of clean secure video reception. With broadcast quality H.264 encoding, customized high power, and optional bandwidth applicable to various individual communication. Such high performance provides stability and quality of transmission, especially in long-range NLOS(non-line-of-sight) environment. It is flexible and easy to be carried and installed everywhere.
Features:
1) Compact designed, lightweight 1.6kg;
2) Full hd resolution, low delay 40-80ms;
3) High performance, LCD to adjust parameter
4) Special for obstructed, interfered wireless video transmission environment, make the video to penetrate obstacles
5) RF output 5Watt,can support 10km+ LOS range, air to ground range up to 20km+.
Transmission path: TX~ communication command vehicle ~ local command centre ~ network to provinces and cities command centre.
At the front end, workers carry the transmitter to transmit the site audio, video signals to communication command vehicle; Then, the communication command vehicle as repeater to extend the wireless signals to local command centre; Last, in the local command centre, customers can access one channel av signals into monitor to realize real time monitoring and control. For another av signals, it can be transmitted to all province
TX Parameters
| Frequnecy | Video: 300MHz~860MHz |
| Data: 223~235MHz |
| Power | 37dBm (5Watts) |
| Video Coding | H.264 |
| Video | Mini High Definition Multimedia Interface: 1080 60P/1080 50P/1080 30P/1080 25P/1080 24P/1080 60I/1080 50I/1080 30I/720 60P/720 50P/720 30P(self-adaption) |
| AV in: 720x480 60I(NTSC)/720x576 50I(PAL)(self-adaption) |
| Audio | Mini HDM |
| AV in & Audio in |
| Antenna | UHF |
| Data | One-way transparent data transmission (OSD UART) |
| Serial port (Config UART) RS485 |
| Modulation | Convolution coding ratio: 1/2, 2/3, 3/4, 5/6, 7/8 |
| Support QPSK/QAM16/QAM64 |
| Support IFFT: 2K/8K |
| Guard Interval: 1/4, 1/8, 1/16, 1/32 |
| Bandwidth: 2/3/4/5/6/7/8 MHz |
| Encryption: AES256 |
| Power Input | DC12V/3.5A |
| Weight | 1.6kg |
